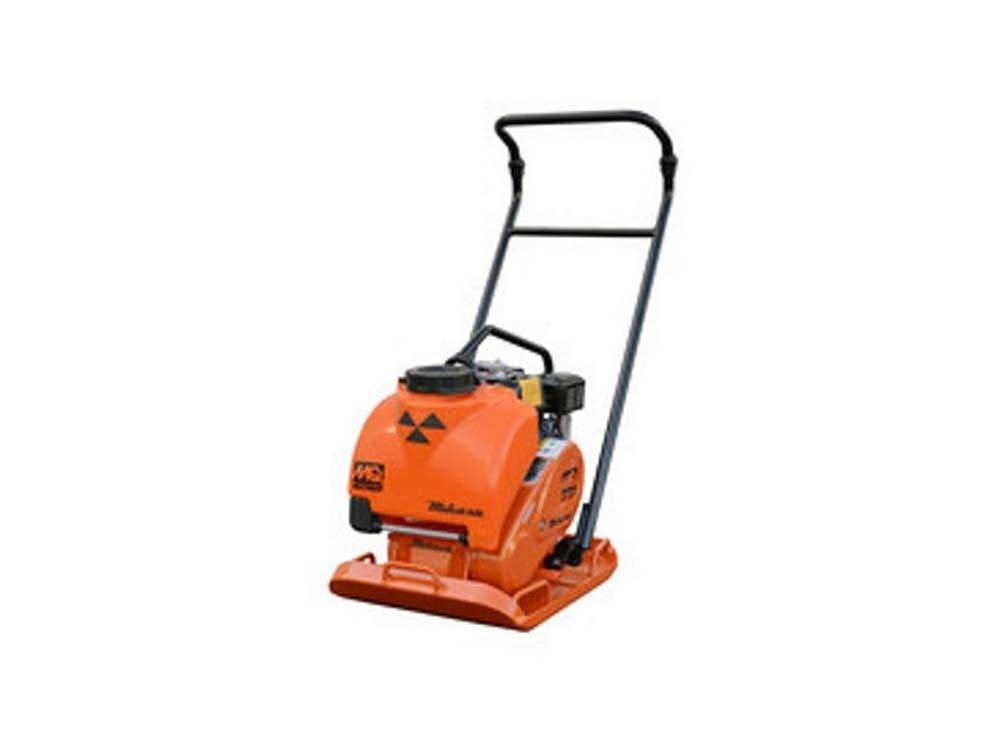

Multiquip® One-Way Plate Compactors MVC82VHW

Recognized as the industry standard for compacting granular soils and asphalt.

Features may include:

• Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.

• Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.

• Anti-vibration handle dramatically reduces operator fatigue and increases productivity.

• Solid, high-strength steel base plate for durability.

• Tubular steel roll bar protects engine components and provides a central lifting point.

• A sealed belt cover keeps dirt and rocks out extending belt life.

• Open base plate design makes for easier removal of dirt and rock build-up.

• Cog-tooth belt drive enables longer life compared to conventional V-belts.

• Front-mounted exciter assembly allows for easy service access.

• A removable, tool-free water tank can easily be refilled to 11.5 quart capacity.

• Multiquip® One-Way Plate Compactors MVC82VHW

• Year2020
• ManufacturerMultiquip®
• Model NameOne-Way Plate Compactors
• Trim NameMVC82VHW
• Generic Type (Primary)Single Direction Vibratory Plates

• Operational

• Operating ConditionsCentrifugal Force: 3080 lbf (13.7 kN)
• Operating SpeedExciter: 5600 VPM |Max Forward Per Min: 72 ft (22 m)
• DimensionsPlate Size: 17.7 in (450 mm) x 22.4 in (570 mm) | Shipping: 33.5 in (851 mm) x 18.5 in (470 mm) x 27 in (686 mm)
• Overall Length36 in (914 mm)
• Overall Width17.7 in (450 mm)
• Overall Height39.5 in (1003 mm)

• Capacities

• Fuel CapacityConsumption Per Hour: 0.31 gal (1.17 L) | Water Tank: 11.5 qt (10.88 L)

• Weights

• Weight, In Running OrderOperating: 181 lb (82 kg)
• Weight, As Shipped200 lb (91 kg)
